Piaggio Porter Rear Shock Absorber Disassembly

1 - Raise the vehicle using the lift.

2- Support the differential box using a workshop jack.

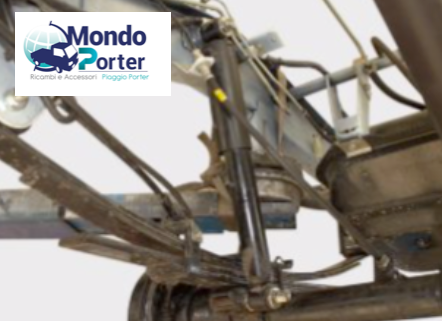

3 - Unscrew the lower fastening nut of the rear shock absorber to the axle shaft of the differential.

piaggio porter shock absorber

4 - Unscrew the nut fixing the rear shock absorber to the frame.
Remove the shock absorber .

rear shock absorber piaggio porter

5 - Check the functioning of the shock absorber .

Push the piston rod down, checking that the pull is uniform throughout the stroke and that there is no resistance or abnormal noise.

rear shock absorber piaggio porter

Push down on the piston rod and release it, making sure it returns to a constant speed. In case of defects or anomalies, replace the shock absorber.

Assembly - Piaggio Porter Rear Shock Absorbers

For assembly, carry out the operations described for disassembly in reverse order, respecting the locking torques.

rear shock absorbers piaggio porter

Locking torques (N*m)

Rear shock absorbers - Upper and lower fixing 51 ± 12.8 Nm
