Assembly - Piaggio Porter Window Lifter / Window Lifter

1 - Insert the glass from the inside of the door, taking care not to hit it against the uprights. Reposition the sealing gaskets.

2- With the help of a suitable tool, lock the glass at the top.

3 - Reposition the front window guide

4 - Tighten the lower fastening screw of the front window guide.

5 - Tighten the front window guide upper fixing screw

6 - Insert the rear window guide into its seat from below

7 - Tighten the lower fixing screw of the rear window guide

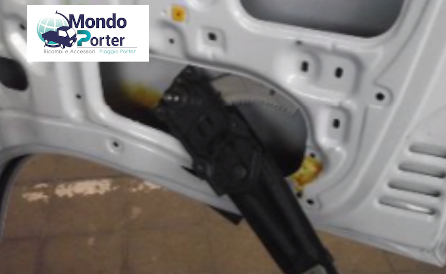

8 - Insert the window regulator device in its seat.

9 - Tighten the screws fastening the window lifter device to the door

10 - After placing the glass on the device, momentarily use the knob to the point of identifying the threaded holes in order to subsequently position the relative screws.

11 - Tighten the screws fixing the glass to the window regulator device.

12- Remove the knob.

13 - Refit the trim panel
