Disassembly Guide - Piaggio Porter Brake Cylinders

By Christian Sorbello
1 min read

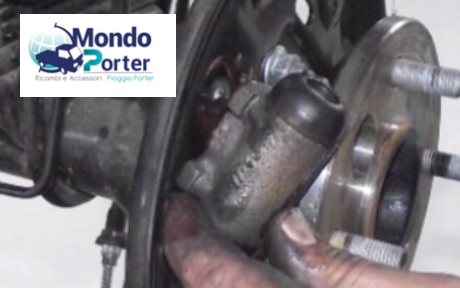

cilindretto freno piaggio porter

Piaggio Porter Brake Cylinder Disassembly

1 - Remove the Brake Shoes

( find HERE the guide to disassemble the brake shoes of your Piaggio Porter)

JAW DISASSEMBLY GUIDE

piaggio porter braking

2 - Unscrew the braking system bleed screw.

piaggio porter brake cylinders

3 - Unscrew the nut fixing the brake pipe to the cylinder

piaggio porter brake cylinders

4 - Unscrew the fixing screws of the cylinder on the jaw holder plate

piaggio porter brake cylinder

5 - Remove the cylinder from the shoe holder plate

piaggio porter brake cylinder
