Piaggio Porter Front Suspension Arm Disassembly

1 - Remove the Front Wheel

piaggio porter front suspension arm

2 - Undo the bolt and nut fastening the lower arm to the wheel hub . Pull the arm complete with dust seal downwards

piaggio porter front suspension arm

3 - Unscrew the fixing nut, complete with washer, of the arm strut to the upright support .
Remove the arm strut paying attention to the presence of the buffers.

piaggio porter front suspension arm

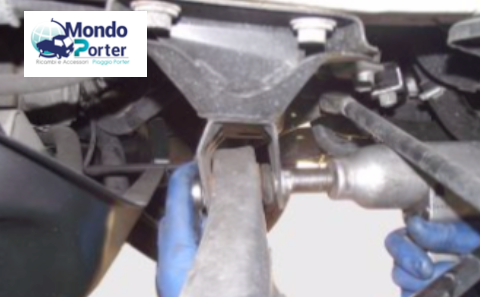

4 - Remove the fixing bolt to the cross member, complete with nut and washer, and remove the lower suspension arm .

piaggio porter front suspension arm

5 - Undo the screws fixing to the frame and the one fixing to the radiator support and remove the upright support

piaggio porter front suspension arm

6 - Undo the screws fastening the front suspension cross member and the transmission retaining plate to the frame.
Remove both.

piaggio porter front suspension arm
