Disassembly / Assembly Piaggio Porter Door Side Panels

By Christian Sorbello
1 min read
montaggio pannello sportello piaggio porter

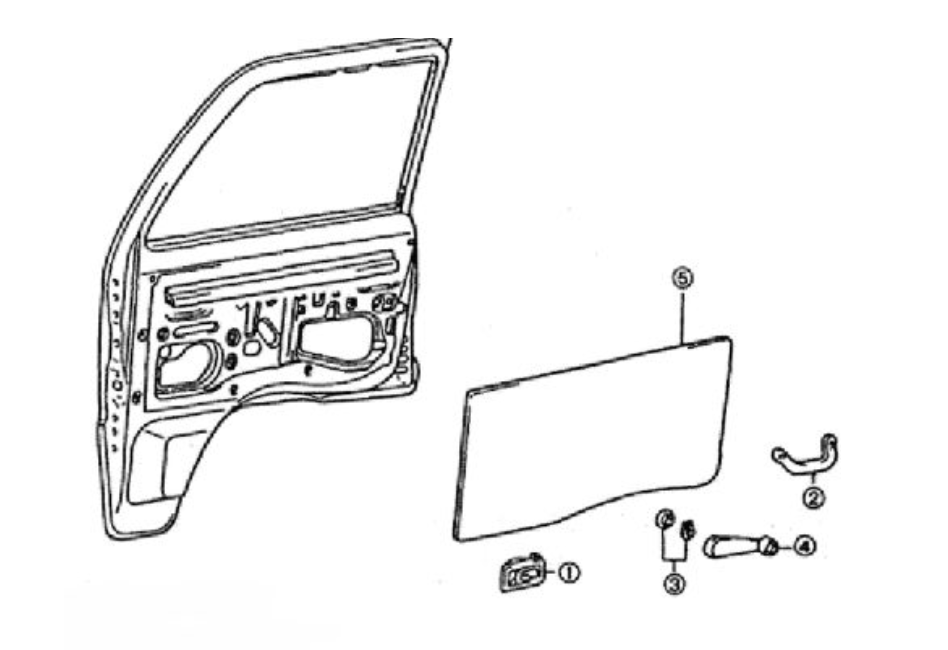

COMPONENTS
1. Internal Door Opening Handle
2. Inner Door Pull Handle
 3. Snap ring and spacer
4. Window handle
 5. Front door trim panel

handle piaggio porter spare parts

Disassembly
1 . Remove the fixing screw of the door opening handle . Remove the front door inner handle.

piaggio porter handle
 2 . Disassemble the inside handle by removing the two screws.

3 . Using a cloth, remove the lever snap ring and extract the window regulator handle , collecting the relative spacer.

piaggio porter window handle

4. Using a suitable tool, remove the trim clips and pull out the door trim panel.

door panel piaggio porter

Installation


1 . Place the trim panel on the door then fit the retaining clips.


2 . Fit the door opening handle by tightening the relative screw.


3 . Fit the inside handle by tightening the two screws.

piaggio porter handle, body spare parts

4 . Fit the window regulator handle complete with spacer and elastic ring with the window glass completely closed.

piaggio porter window handle
