Piaggio Porter Brake Fluid Reservoir / Assembly and Disassembly

FrenaturaChristian Sorbello

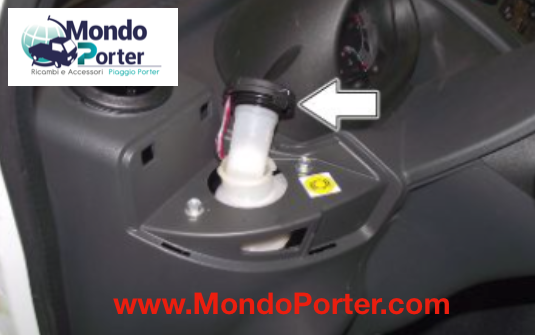

serbatoio liquido freni piaggio porter

Piaggio Porter Brake Fluid Reservoir Disassembly in 4 Steps

1 - Remove the cover on the dashboard

piaggio porter brake fluid reservoir

2 - Empty the brake fluid reservoir by temporarily removing the cap.

piaggio porter brake fluid reservoir

3 - Replace the cap and undo the screws fastening the brake fluid reservoir to the dashboard

piaggio porter brake fluid reservoir

4 - Remove the brake fluid reservoir from the underside of the dashboard by disconnecting the pipes on the brake booster

piaggio porter brake fluid reservoir

Piaggio Porter Brake Fluid Reservoir Assembly

1 - Insert the brake fluid reservoir from the underside of the dashboard and connect the pipes to the brake booster.

piaggio porter brake fluid reservoir

2 - Tighten the fixing screws of the brake fluid reservoir on the dashboard.

piaggio porter brake fluid reservoir

3 - Fill the brake fluid reservoir with the recommended product.

piaggio porter

AVOID CONTACT OF THE BRAKE OIL WITH THE PLASTIC SURFACES OF THE DASHBOARD. IMMEDIATELY FLUSH THE AREA WITH NON-ETHYLATED PETROL OR SIMILAR PRODUCT.

4 - Reinstall the cover on the dashboard . Bleed the braking system.

dashboard cover piaggio porter
