Disassembly - Piaggio Porter Rear Bumper 614833


By Christian Sorbello
1 min read

Paraurti Posteriore Piaggio Porter 614833

Disassembly - Piaggio Porter Rear Bumper 614833

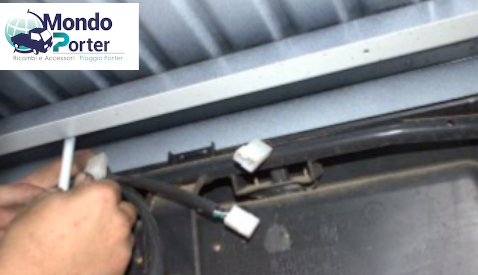

1 - Working from inside the bumper , disconnect the rear light unit connectors on both sides of the vehicle.

Piaggio Porter Rear Bumper 614833

2 - Working from inside the bumper , disconnect the license plate light connectors

Piaggio Porter Rear Bumper 614833

3 - Unscrew the rear bumper fixing screw

Piaggio Porter Rear Bumper 614833

4 - Undo the fixing screw of the rear bumper bracket and remove it

Watch the video
