Piaggio Porter Diesel Thermostatic Valve / Thermostat

Characteristics and Temperatures of the Thermostat

Let's see them together :)

By Christian Sorbello

January 25, 2017 1 min read

thermostatic valve / thermostat piaggio porter Diesel 1.4 lombardini

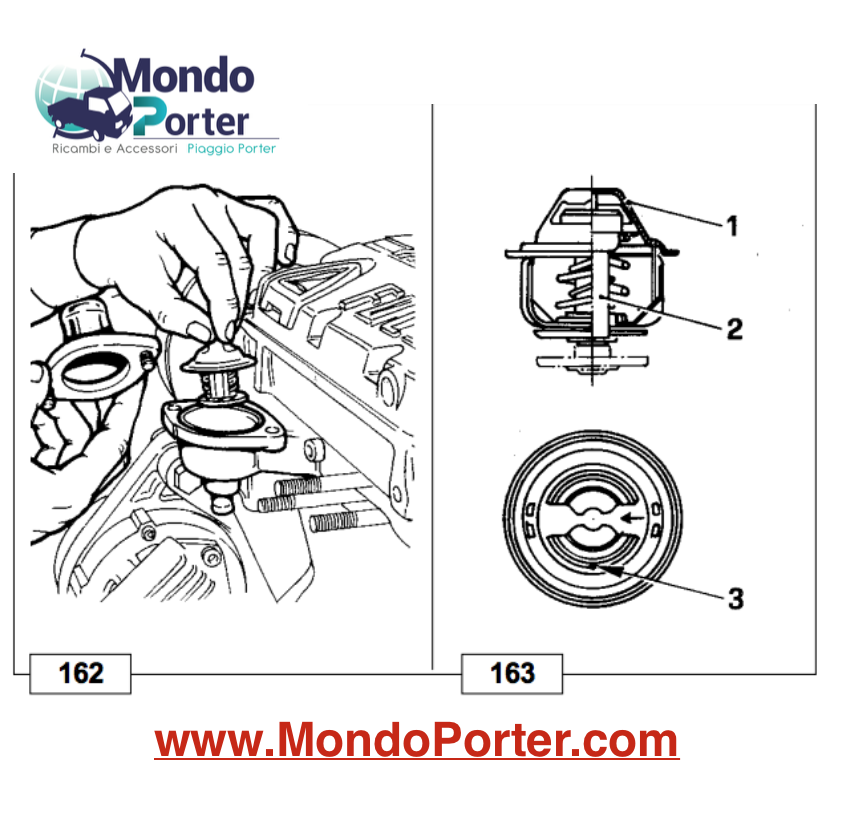

Components Figure 163 :

1 - Stainless steel or brass body 2 - Wax type bulb 3 - Air purge hole

Features :

Opening temperature: ... 83°÷87°C

Max stroke at: ..................... 94°C = 7 mm

Liquid recirculation: ................ 30÷80 l/h.
