Fit the oil pickup with the delivery pipe on the timing case and the support bracket on the cylinder block, tightening it to the prescribed torque.
Apply the prescribed sealant evenly and without interruptions on the mating surface between the oil sump and crankcase.
Recommended products
Loctite 5699 Sealing Adhesive.

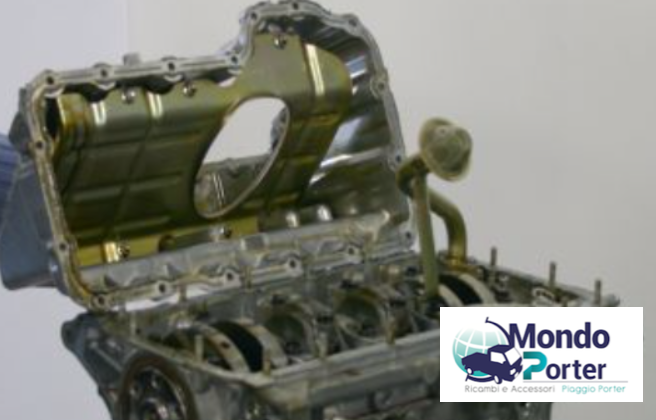

Fit the oil sump on the cylinder block and tighten the screws and nuts to the prescribed torque, starting from the center and moving towards the sides.
Locking torques (N*m) Oil sump - Cylinder block 11 Nm
Fit the washer and the threaded drain plug in the sub-sump and tighten to the prescribed torque.
Locking torques (N*m)
Engine oil drain plug - Engine oil pan 25 Nm
