Installation


1.
Apply gear oil to the inner side and outer side of the sleeve as shown.

transmission shaft coupling piaggio porter

2. Insert the transmission side propeller shaft .

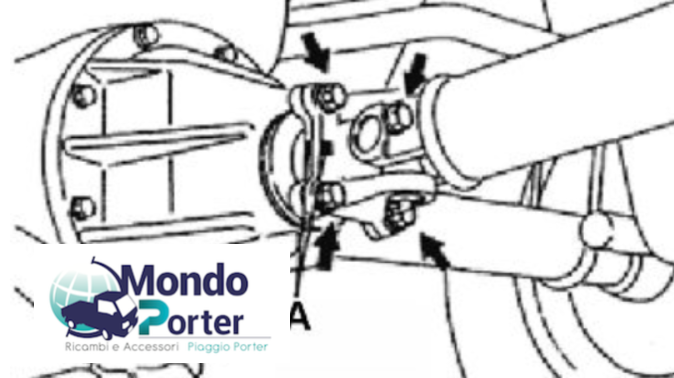

3. Fit the drive shaft by aligning it with the reference mark A on the differential flange.

transmission shaft and piaggio porter gearbox

4. Install the mounting bolts with new washers.


5 . Tighten the fixing bolts uniformly and gradually to the prescribed torque.

6. Rotate the transmission shaft , and check that it does not strain and does not produce unusual noises.

Locking torques (N*m)

Universal joint - Rear differential flange 39÷54
